애플리케이션: | 파우더 | 패키징 유형: | 열린 마우스 가방, 가방, 배럴 |
---|---|---|---|
차원(l*w*h): | 3000*1500*3500mm | 상품 이름: | 고속도는 닭 비료 입자 백 패키징 머신을 말렸습니다 |
3 부하전지: | 높은 계량 정확도 | 세개의 이동 실린더: | 빠른 -미듐 슬로우와 공급속도 |
통제 상자: | 가득 찬 터치 스크린 패널 | 자동 백 클램프: | 감지기 통제 |
PLC 체계: | 쉬운 운영 | 충전물: | 파우더 |
재봉틀: | 전자동 | OEM 서비스: | 경험 15 년 연구 및 개발 |
품질 보증: | 일년 | 상태: | 새롭습니다 |
포장 재료: | 우드, 나무 상자에서 패키징 머신에 비료를 주십시요 | 자동 등급: | 반자동입니다 |
구동 방식: | 공압 | 애프터 서비스는 제공되었습니다: | 해외로 기계류를 서비스할 수 있는 엔지니어들 |
타입: | 다릅니다 | 전압: | AC220V/380V/50HZ |
힘: | 3KW | 중량: | 1300kg |
공항: | 상하이 또는 중국의 어떠한 공항 |

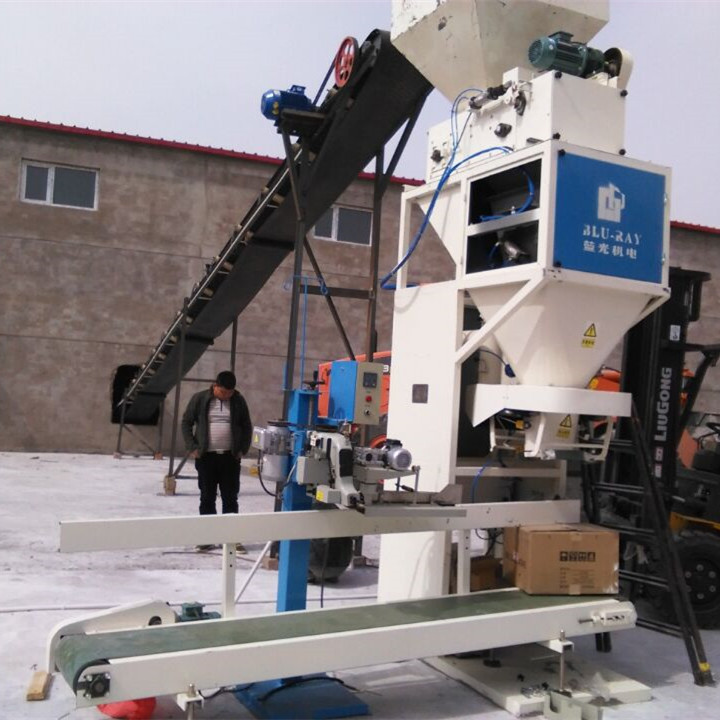

High speed dried chicken manure particles 10-50kg bag packaging machine
1, Product Name: High speed dried chicken manure particles 10-50kg bag packaging machine
2, Item: DCS-50D
Application materials
|
flake,lump,block,aggregation,mixture products of any industry
|
||
Display Resolution
|
5g, 10g
|
||
Weighing Range
|
5-50kg/bag or customized needs
|
||
Precisions
|
+/-(0.1-0.2)% FS
|
||
Packing Capacity
|
300-420 bags/hour
|
||
Dimention(L*W*Hmm)
|
3000*1500*3500mm, the size can be customized according to your site
|
||
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
Air Source
|
0.5-0.7 Mpa
|
||
Power
|
3KW
|
||
Working Temperature
|
-10~40 ℃
|
||
Relative Humidity
|
≤90% RH(Non-condesing)
|
Belt feeding type packing machine suit for pack flake,lump,block,aggregation,mixture products, such as gravel,pebble,stone,manure,organic fertilizer, soil, sawdust,animal feed(big size/mixture),coal briquette, aluminum sulfate etc
This bagging machine is especially designed for pack materials(products) into open mouth bags, such as plastic woven bags,kraft bags,paper-plastic compound bags,sacks,barrel etc
Automatic filling-automatic weighing-manually bag placing-automatic bag clamped-materials automatic discharge-automatic bag loose-automatic conveying-automatic bag closed by sewing/heat sealing
+Full touch screen panel
+PLC system
+Photoelectric sensor switch
+English/Chinese view
+Easy operation interface
+Proction data record & print
+Connect computer available
+Famous brand load cell, more stable
+Installed 3pieces load cell, high weighing accuracy
+Control by the PLC system and motor
+Feeding speed with fast-midium-slow due to the motor frequency change
+Three-travelling cylinder control the materials
through for feeding
+Photoelectric sensor switch
+Big force 2pcs air cylinder control
+Automatic bag clamp and loose
+Automatic materials dischage
+Suit for different bag size
+All of our packing machine will install air outlet
+Connect your dust removal device, making the
working environment more hygienic
+Add our pulse dust collector,
dust collection≥99.8%
+Automatic bag top folding device(opitional)
+Photoelectric sensor switch
+Automatic knife thread cut
+Single needle double thread chain
+Production data record & print
+Thread end length ajustable
+Bag sewing heigth adjustable
+With automatic bag conveyor
Item
|
DCS-50WD
|
DCS-50D
|
DCS-50SD
|
Application materials
|
flake,lump,block,aggregation,mixture products of any industry
|
||
Display Resolution
|
5g, 10g
|
||
Weighing Range
|
5-50kg/bag or customized
|
||
Precisions
|
+/-(0.1-0.2)% FS
|
||
Packing Capacity
|
180-240 bags/hour
|
300-420 bags/hour
|
500-600 bags/hour
|
Dimention(L*W*Hmm)
|
3000*1500*2800
|
3000*1500*3500
|
4000*1500*3900
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
Air Source
|
0.5-0.7 Mpa
|
||
Power
|
3KW
|
3KW
|
6KW
|
Working Temperature
|
-10~40 ℃
|
||
Relative Humidity
|
≤90% RH(Non-condesing)
|
Non weighing hopper belt feeding type packaging machine
packing speed 180-240 bags/hour
Single weighing hopper belt
feeding type packaging machine
packing speed 300-420 bags/hour
Dual weighing hopper belt feeding type packaging machine
packing speed 500-600 bags/hour
-15 years professional manufacturer of packing machines, sewing/heat sealing machine, automatic palletizer
machine, elevator/conveyor etc
-More than 10 person engineers team, OEM service and customized design are available
-3000㎡ working shop, high production capacity
-Sales and after sales team 24 hours online service
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-testing-packaging and transport-after service
We are Alibaba Gloden Supplier with assessment and the BV certificate, CE certificate and CMC (China Metrology Certification)
We have attend many trade shows in China mainland and overseas, such as Canton Fair, HK Source Fair, IPPE, China
Feed Expo etc.
Our packing machines have exported to many countries, such as USA, Australian, Korea, Philippines, Malaysia,
Oman, Mongolia, Iraq, Iran, Bulgaria etc. They all choose our packing machine, sewing machine and other equioments.
We can provide all equipments of packaging line, including the batching system, packing machines(semi-automatic/full automatic), hopper, conveyor(2/3/4/5/8 meters etc), various item of elevator(belt/screw/bucket elevator etc),automatic bag stacking/palletizer machine, air compressor, sewing/heat sealing machine, thread for sewing and so on.
We have made many cases of packaging solution for feed, fertilizer, flour, starches, grain, soil, stone, manure, chemical,
mining, coal, cement, lime powder etc industries.
